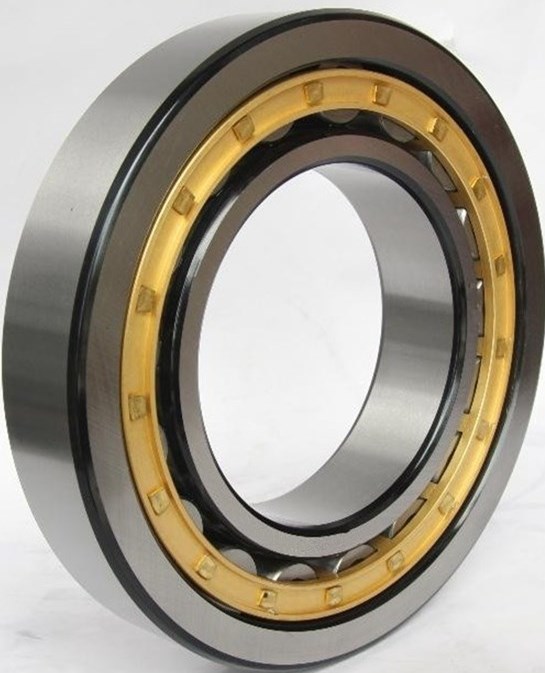

FAG single row cylindrical roller bearing can be release bearing, easy to install and disassemble, both ring can be used in a tight fit, the correction between roller and raceway contact wires can reduce the stress concentration.

FAG cylindrical roller bearing basic type

The type of FAG cylindrical roller bearings http://www.alierbearings.com/brand/fag/index.html  is divided according to the different form of the baffle.

There are two sides in the outer ring of the NU type bearing.

The n-type bearing inner ring has two sides, and the outer rim is unblocked.

The NU and N cylindrical roller bearings are used for floating ends.

NJ cylindrical roller bearing outer ring has two sides, inner circle has the edge, can withstand one direction axial force.

NUP cylindrical roller bearing reserve fixed end can withstand two direction axial force.

FAG cylindrical roller bearing pairs

The stress concentration can be reduced by the modified rollers and raceway contact lines of the FAG cylindrical roller bearings.

The allowable deflection Angle of single row cylindrical roller bearings is 4 ',

FAG cylindrical roller bearing tolerance

FAG cylindrical roller bearing manufacturing tolerance level is the common level.

FAG cylindrical roller bearing clearance

FAG cylindrical roller bearing manufacturing clearance level is the common level.

FAG cylindrical roller bearing allows rotating speed

In some cases, the reference speed may exceed the limit speed.

Consider specific working conditions by measuring the heat generated by maximum allowable working speed.

FAG cylindrical roller bearing cage

Most 2E,22E,3E and 23E series of FAG cylindrical roller bearings are made of glass fiber reinforced polyamide (nylon).

When the roller bearing has no suffix, the stamping plate is used to hold the frame;
